Iron Core Transformers – Key Components, Applications, And More

Iron core transformers play a crucial but often unnoticed role in daily life, energizing everything from home appliances to industrial machinery. Though their design appears simple, these components embody complex technology essential to modern power systems. Understanding their operation reveals the sophistication behind the electricity we rely on every day.

Key Transformer Parts For Iron Core Transformers

Primary Winding

The primary winding initiates electromagnetic induction by generating a magnetic field when AC flows through it. Its number of turns directly affects the voltage and current transferred to the secondary winding. The winding’s design and materials are optimized to handle input power efficiently, minimizing energy loss.

Secondary Winding

The secondary winding produces the induced electromotive force (EMF) from the magnetic flux of the primary. The ratio of turns between secondary and primary windings determines voltage step-up or step-down. Proper insulation and precise winding ensure efficient energy transfer with minimal resistance and leakage losses.

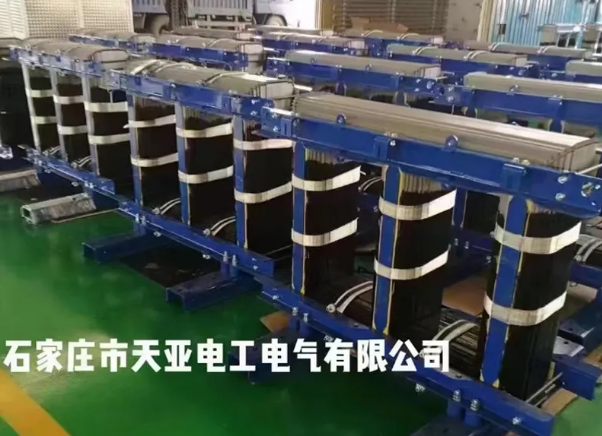

Iron Core

The iron core focuses and guides the magnetic flux generated by the primary winding to maximize coupling between windings. Constructed from thin, laminated silicon steel sheets, it reduces eddy current losses and minimizes hysteresis losses, ensuring efficient transformer operation under varying loads.

Advantages

High Efficiency

Iron core transformers often achieve efficiencies above 95%, especially in high-power applications. This is due to the iron core’s low-reluctance path for magnetic flux, which minimizes energy loss during power transfer. Such efficiency is crucial for energy conservation in power distribution systems transmitting large amounts of electricity over long distances.

Durability

Their sturdy construction ensures iron core transformers withstand harsh conditions. The laminated iron core resists mechanical stress, while windings made from high-quality copper or aluminum endure high temperatures and electrical loads. This durability supports long service life with minimal maintenance, making them reliable for industrial, commercial, and residential use. Their capacity to handle various power levels adds to their versatility across electrical systems.

Disadvantages

Weight and Size

Iron core transformers are heavy and bulky due to the large amount of iron in the core needed to efficiently channel magnetic flux. This bulkiness limits portability and complicates installation, especially in confined spaces or where transport is a concern. Their weight often demands reinforced mounting and additional safety measures.

Hysteresis and Eddy Current Losses

Energy losses arise from hysteresis and eddy currents in the iron core. Hysteresis losses occur as the core’s magnetization lags behind the alternating current, dissipating energy as heat. Eddy currents, induced by the changing magnetic field, create circulating currents within the core that also generate heat. Although laminated cores reduce these effects, such losses still impact overall efficiency, particularly in continuous, long-term operation.

Applications

Power Distribution

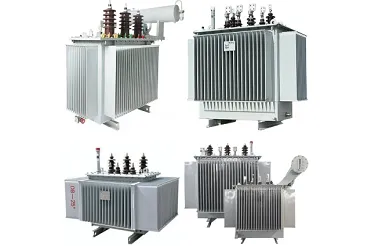

Iron core transformers are essential in electrical power distribution, stepping down high transmission voltages to safer levels for residential, commercial, and industrial use. They ensure voltage regulation at substations and utility poles, maintaining consistent power quality and protecting electrical appliances.

Electronics

Widely used in power supplies for devices like computers, televisions, and audio equipment, iron core transformers convert high AC voltages to precise lower voltages required by electronic circuits. They provide stable power essential for sensitive components and are common in adapters and chargers converting AC to DC.

Industrial Machines

Iron core transformers supply specific voltage levels needed by industrial machinery, motors, and control systems. They adjust voltage up or down to match equipment requirements, supporting efficient and safe operation. Their durability makes them indispensable in factories and industrial plants with high power demands.

Conclusion

Iron core transformers remain fundamental in electrical engineering, delivering high efficiency and durability across diverse applications. Although they are bulky and experience some energy losses, their advantages in power distribution, electronics, and industrial use make them indispensable. Understanding their components and operation highlights their critical role in reliable, efficient energy transfer. As technology evolves, iron core transformers continue to be vital for supporting modern infrastructure.
