Customers searching for High Temp Winding Wire, Heat Resistant Wire, High Voltage Winding Wire, Corona Resistant Wire, High Conductivity Wire, Low Loss Winding Wire, High Strength Winding Wire and High Efficiency Transformer Wire share one goal: reliable long-term performance under electrical, thermal and mechanical stress. This technical/performance page aggregates performance requirements, proven construction strategies, testing protocols and selection guidance so engineering, procurement and specification teams can make fast, defensible choices.
This guide covers conductor materials and insulated constructions intended for:
Power and distribution transformers
Traction and inverter-fed transformers
Dry-type transformers and reactors
Motors, generators and specialty rotating equipment
Emphasis is on combinations of thermal endurance, electrical integrity (low losses, corona resistance), mechanical robustness and long service life — traits that buyers searching for high-performance winding wire expect.
Thermal endurance: Insulation systems must withstand expected operating temperatures and thermal cycling without significant loss of dielectric strength or mechanical integrity.
Low electrical loss: Conductor selection and geometry should minimize resistive (I²R) and proximity/eddy losses to meet efficiency targets.
High conductivity: Use high-conductivity copper/aluminum options with tight dimensional tolerances to reduce loss.
Corona and partial-discharge resistance: Surface finishes, grading and manufacturing quality must prevent partial discharge at intended operating voltages.
Mechanical durability: Sufficient tensile strength, flex performance and abrasion resistance to survive winding, handling and in-service vibration.
Chemical and moisture resistance: Materials should resist thermal oxidation, moisture ingress and chemical attack encountered in typical service environments.
Oxygen-free high conductivity (OFHC) copper: Baseline for applications prioritizing conductivity and long-term stability.
Flat/rectangular conductors: Reduce eddy losses in transformer windings and improve winding packing efficiency.
Stranded and litz configurations: Beneficial where skin effect and proximity losses are significant (high-frequency or transient-rich systems).
Aluminum conductors with protective coatings: Provide weight and cost advantages where acceptable, with coatings to mitigate contact and corona issues.
Polyimide / Nomex combined systems: Deliver Class H thermal performance (180°C rating) when true high-temperature endurance is required.
Class F (155°C) varnish and Class B (130°C) options: Common cost-performance choices for many distribution and industrial applications.

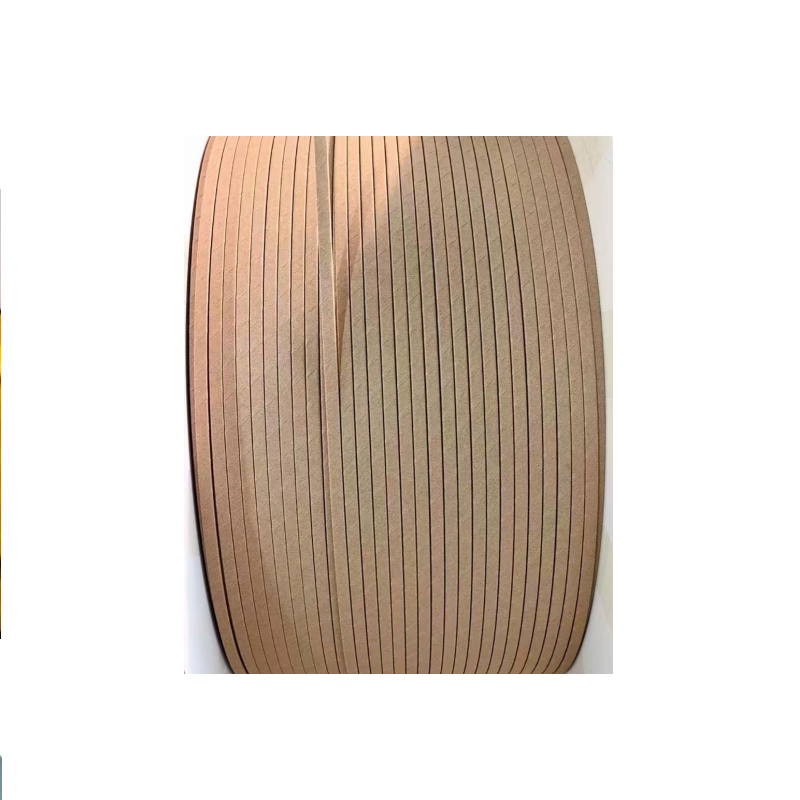

Multi-layer systems: Enamel → varnish → paper or polymer wrap to combine dielectric strength, mechanical protection and corona suppression.
Smooth, void-free enamel coatings and corona-suppressant varnishes reduce partial-discharge inception. Surface treatments and graded insulation layers are effective at limiting corona growth in high-voltage windings.
Reinforced wraps, composite tapes and tensile-strengthened conductor alloys improve handling and fatigue life during winding and in dynamic service environments.
Match insulation class to expected operating temperature plus a hot-spot margin. Common thermal classes:
Class B (130°C) — economical option for many distribution transformers and general-purpose equipment.
Class F (155°C) — extended life and higher thermal margin for elevated ambient or loading scenarios.
Class H (180°C) — for demanding applications with high ambient temperatures, frequent overloads, or long-life design requirements.
Specify duty cycle (continuous vs intermittent), cooling method (oil, air, water) and expected ambient to determine the correct class and hot-spot allowance.
Low-loss strategy: Use high-conductivity conductors, optimized cross-sections (flat conductors or foil) and appropriate strand geometries to reduce resistive, skin and proximity losses.
Conductor tolerances: Tight dimensional and resistance tolerances reduce imbalance and hot-spots in windings.
Design considerations for efficiency: Select conductor geometry and insulation thickness to meet targeted I²R and stray-loss budgets while complying with thermal limits.
At elevated voltages, control measures for corona and partial discharge (PD) are essential:
Coating quality: Require smooth, void-free enamels and varnish systems with documented PD performance.
Graded insulation & barrier wraps: Implement multi-layer insulation and edge treatments to reduce electric field concentration.
Factory PD testing: Insist on PD testing and PD inception reporting for high-voltage coils and transformers.
Wires must withstand winding tension, bending cycles, thermal processes and transport without insulation failure:
Tensile and elongation: Specify minimum tensile strength and minimum elongation to ensure safe winding and handling.
Bending performance: Define allowable bending radius and flex cycle requirements to prevent insulation cracking during manufacturing.
Handling guidance: Use controlled winding tension, proper spool sizes and protective routing to avoid scratches and abrasion.
Include explicit test requirements in procurement and specification documents to guarantee performance:
Thermal aging tests to verify insulation stability under accelerated thermal exposure.
Dielectric withstand (hipot) and insulation resistance tests to confirm dielectric integrity after manufacture and post-winding.
Partial discharge (PD) testing and PD inception voltage reporting for high-voltage applications.
DC/AC resistance tolerance and conductivity certification to verify conductor performance.
Mechanical tests: tensile strength, elongation, and enamel adhesion tests.
Visual and dimensional inspection: ensure coating uniformity, dimensional accuracy and absence of surface defects.
Reference recognized standards and test protocols (IEC, ASTM, UL and similar industry standards) in procurement documents and require relevant test certificates from suppliers as part of acceptance criteria.
Define operating envelope: maximum voltage, ambient temperature, cooling method and duty cycle.
Choose thermal class: select insulation rated above expected hot-spot temperature for margin and life expectations.
Prioritize electrical losses: for efficiency targets, choose higher-conductivity conductors and low-loss geometries.
Require corona & PD performance: request PD test reports and specify corona-resistant coatings for medium and high-voltage builds.
Specify mechanical constraints: state winding tension, bending limits and required mechanical durability in procurement documents.
Mandate factory documentation: include manufacturing and test certificates (thermal, PD, resistance, mechanical) with each shipment.
Distribution transformer winding (oil-immersed)
Conductor: Enamelled copper conductor, high-conductivity grade.
Insulation: Multi-layer system with varnish impregnation, insulation class: F (155°C) minimum.
Resistance tolerance: DC resistance ±2%.
Mechanical: Minimum tensile and elongation characteristics per supplier test reports.
Tests: Dielectric withstand, insulation resistance, thermal aging, and factory partial discharge testing.
Traction / inverter-fed transformer winding

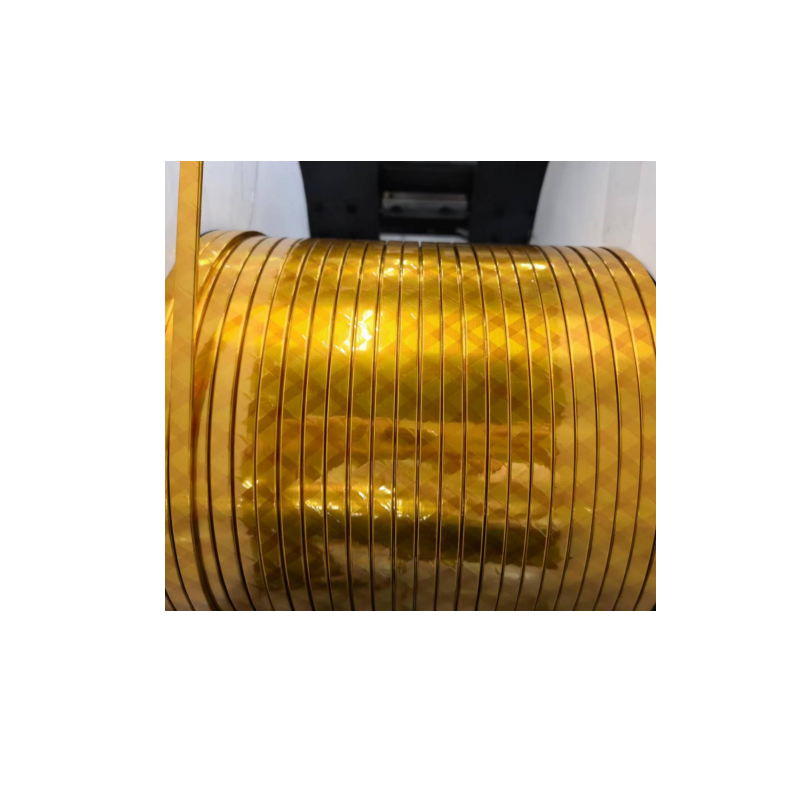

Conductor: Multi-layer polyimide varnish system on flat copper conductor for reduced eddy losses.
Insulation class: H (180°C) where continuous high thermal stress or frequent overloads are expected.
Tests: Hipot, PD testing, dimensional and visual inspections after impregnation.
High-voltage reactor winding
Conductor: Corona-resistant enamel and surface treatment with documented PD inception performance.
Insulation: Graded multi-layer system with barrier wraps at winding edges.
Tests: Factory PD testing and PDIV reporting; dielectric withstand; mechanical adhesion tests.
Store spools and coils in dry, temperature-controlled areas; avoid direct sunlight and extreme humidity.
Use winding guides, tension controls and appropriate tooling to prevent insulation damage.
Follow manufacturer-recommended varnish/impregnation and curing cycles for best dielectric performance.
Perform post-winding tests (hipot, insulation resistance, PD) before energizing equipment.
Q: What’s the practical difference between High Temp Winding Wire and Heat Resistant Wire?
A: "High Temp Winding Wire" typically denotes a conductor-plus-insulation system rated to a higher thermal class for continuous elevated-temperature duty; "Heat Resistant Wire" emphasizes material chemistry and coatings engineered to resist thermal degradation under demanding conditions.
Q: Does higher conductivity always reduce winding losses?
A: Higher conductivity reduces DC resistive loss, but total winding loss also depends on conductor geometry, skin and proximity effects, and winding topology.
Q: How do I specify corona resistance?
A: Require smooth, void-free coatings, graded insulation where applicable, and factory PD testing with PD inception data in supplier documentation.
