Power transformers play a crucial role in ensuring consistent and efficient transmission of electricity. Their placement within power grids is carefully planned to maximize distribution efficiency. A power transformer efficiently steps up or steps down voltages to optimal levels, enabling both safe long-distance transmission and distribution at lower, safer voltages for household and industrial use.
Understanding how these essential devices function and the variety of applications they serve is especially important for professionals in the electric power sector.
A power transformer is a static electrical device that transfers electric power between circuits without any moving parts, relying on the principle of electromagnetic induction. It efficiently alters voltage levels for power transmission and distribution.

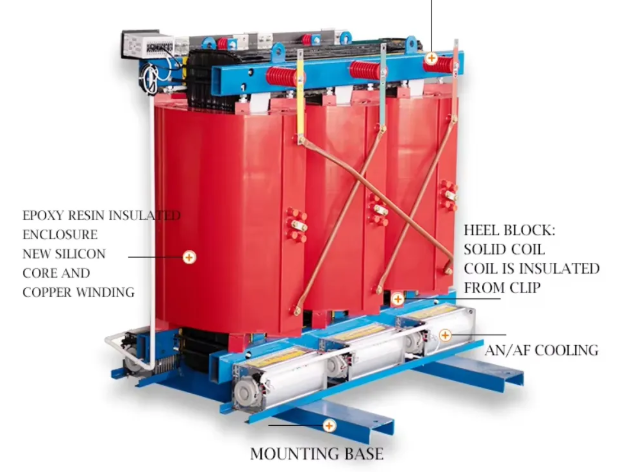

A power transformer consists of two or more coils of wire, called the primary and secondary windings, which are wrapped around a laminated iron core. The core is made of stacked steel laminations, which concentrate and guide the magnetic flux lines generated by the current flowing through the windings.
The entire electrical and magnetic assembly is housed inside a steel tank filled with insulating oil. The oil provides both insulation and cooling for large power transformers during operation. Larger utility transformers may also include additional components such as bushings, cooling ducts, tap changers, and protection circuits, allowing adjustments and ensuring safe, efficient operation during power transmission.
The working principle of a power transformer is based on electromagnetic induction, where a magnetic field in one circuit induces a voltage in a nearby circuit. Specifically, the alternating current (AC) passing through the primary coil generates a changing magnetic field in the iron core, which induces a voltage in the secondary coil wrapped around the same core.
The transformation process occurs as follows:
1. Alternating Current in the Primary Winding: AC flows through the primary winding, creating a continuously changing magnetic field around the transformer’s iron core due to the magnetic effect of current flow.
2. Fluctuating Magnetic Field: As the AC voltage cycles, the magnetic field in the core expands during one half of the cycle and collapses during the other half.
3. Magnetic Flux Cutting the Secondary Winding: This varying magnetic flux extends through the core and passes through the secondary winding wrapped around the same core structure.
4. Induction of Voltage in the Secondary Winding: According to Faraday’s law of electromagnetic induction, the changing magnetic field induces an electromotive force (EMF) in the secondary winding as the magnetic flux cuts through it.
5. Voltage Adjustment via Turn Ratio: The magnitude of the induced EMF depends on the rate of flux change, the number of turns in the winding, and transformer design specifications. By adjusting the number of turns in the primary and secondary coils, the voltage in the secondary can be stepped up or stepped down relative to the primary voltage according to the transformer’s turns ratio.
6. Output for Transmission or Distribution: The transformed voltage in the isolated secondary winding is then available for onward power transmission or distribution to end users.
Power transformers serve a wide range of applications depending on voltage transformation requirements. They are essential for efficient power delivery across extensive electrical networks. Some of the most common applications include:
Transformers in substations are critical for high-voltage transmission. Step-up transformers increase distribution voltages to enable efficient long-distance transmission through power lines. Conversely, step-down transformers reduce transmission voltages for safe distribution to towns and cities via distribution lines.
Underground copper mines face fire and explosion risks, requiring specially designed isolated transformers. These transformers have enclosures around the coil assemblies to prevent arcing, ensuring safe operation in hazardous mine atmospheres.
In thermal and hydroelectric power plants, generators produce electricity at voltages optimized for efficient generation, which may differ from transmission standards. Station service transformers adjust these voltages to meet transmission requirements before the electricity is sent through transmission lines.
Pole-mounted transformers on utility poles reduce distribution voltages to safe levels for homes. Similarly, pad-mounted transformers located in housing complexes convert voltage for residential loads, providing reliable power to homes and small businesses.
Power transformers are used across a wide range of voltages, depending on their capacity and intended application. The common voltage transformer ranges are categorized based on usage and the specific requirements of the power systems they serve. High-voltage power transformers, typically ranging from 110 kV to 750 kV, play a crucial role in efficient power transmission.
· 110 kV Power Transformers: Used for regional power distribution, stepping down higher voltages for industrial and commercial applications.
· 220 kV Power Transformers: Ideal for long-distance transmission, connecting power stations with substations to minimize energy losses.
· 420 kV Power Transformers: Deployed in the backbone of the power grid for inter-regional transmission of large power loads.
· 500 kV Power Transformers: Designed for ultra-high voltage lines, linking major cities or provinces to maintain grid stability.
· 750 kV Power Transformers: Used for high-capacity, long-distance transmission, often spanning countries or continents for efficient power delivery.
These transformers are engineered to minimize energy losses during long-distance transmission, ensuring a reliable and efficient electricity supply.
Reputable power transformer manufacturers provide high-quality products covering voltages from distribution levels to ultra-high transmission levels. Tianya Electric is one such globally recognized provider with extensive experience in the energy sector. You can visit their website to explore their full range of power transformers.
Power transformers are central to electrical transmission and distribution systems. They handle large blocks of electrical energy and enable the voltage transformations necessary for efficient long-distance power transfer and delivery to regional networks. Unlike distribution or instrument transformers, power transformers operate at higher voltage levels and focus on system-level energy transfer rather than localized load supply or measurement.
A solid understanding of how power transformers function—from electromagnetic principles to practical deployment—supports informed decision-making in the planning, design, and operation of modern power systems. Proper selection and use of power transformers are critical to ensuring reliable, efficient, and safe electricity delivery across the grid.
1. What is a power transformer, and how does it differ from other types of transformers?
A power transformer is a high-capacity electrical device used in transmission and distribution systems to transfer energy between circuits by changing voltage levels. It operates at high voltages and near full load for extended periods, supporting bulk power transfer. Unlike distribution transformers, which supply end users, or instrument transformers, which support measurement and protection, power transformers serve system-level energy transfer across the grid.
2. Where are power transformers used within transmission and distribution systems?
Power transformers are installed at generating stations, transmission substations, and major grid interconnection points. They step up voltage for long-distance transmission and step it down at primary substations before electricity moves into sub-transmission and distribution networks.
3. How does a power transformer support long-distance electricity transmission?
By increasing voltage at the source, a power transformer reduces current for the same power level. This minimizes resistive losses in transmission lines, allowing electricity to travel efficiently over long distances.
4. What voltage ranges are typically associated with power transformers?
Power transformers operate at high and extra-high voltage levels. Common voltage classes include 66 kV, 110 kV, 220 kV, 400 kV, and higher, depending on transmission distance and grid design.
5. How is a power transformer different from a distribution transformer in real-world operation?
Power transformers handle bulk energy transfer and operate near rated load within transmission networks. Distribution transformers operate closer to consumers, experience variable loading, and focus on supplying local electrical loads at lower voltages.
6. What factors influence the selection of a power transformer for a transmission or substation project?
Selection depends on voltage rating, power capacity, grid configuration, cooling method, insulation system, environmental conditions, and applicable grid standards. Fault levels and expected operating duty also affect transformer specifications.
7. How do cooling and insulation methods affect power transformer performance?
Cooling and insulation influence thermal performance, efficiency, and service life. Oil-immersed designs with natural or forced cooling are common for high-capacity units, while insulation systems determine dielectric strength and aging behavior under electrical stress.
8. What role do power transformers play in grid reliability and system stability?
Power transformers regulate voltage transitions across the grid, supporting stable power flow between generation, transmission, and distribution systems. Reliable operation maintains voltage control and limits the impact of system disturbances.
9. How long does a power transformer typically operate in service, and what affects its service life?
A power transformer typically operates for several decades. Its service life is influenced by loading, temperature control, insulation aging, maintenance practices, and exposure to electrical or environmental stress.
