A transformer enables the use of lower-voltage electricity for various applications. In many cases, powering equipment directly from the main grid isn’t feasible because the voltage is too high. Transformers resolve this by stepping down high-voltage electricity to a lower, usable level suitable for commercial and industrial operations. There are two main types of transformers: dry-type and liquid-filled.
While both types serve the same fundamental function, they differ in characteristics that make them more suitable for specific environments, applications, and budget considerations. If you're designing a power system for a particular project, Tianya Transformers can guide you through the key factors to consider before selecting the right solution.
The fundamental difference between dry-type and liquid-filled transformers lies in their insulation and cooling medium.
Dry-type transformers use solid insulation systems, such as cast resin or VPI/VPE insulation, and dissipate heat through air. In contrast, liquid-filled transformers use a dielectric fluid—typically mineral oil, natural ester, or synthetic ester—to provide both electrical insulation and efficient heat transfer. This distinction forms the basis for most of the practical differences between the two transformer designs.
Since transformers convert high-voltage electricity into lower, more manageable power, they generate significant heat in the process. Effective cooling is essential—without it, the equipment can overheat and pose safety risks, including combustion.

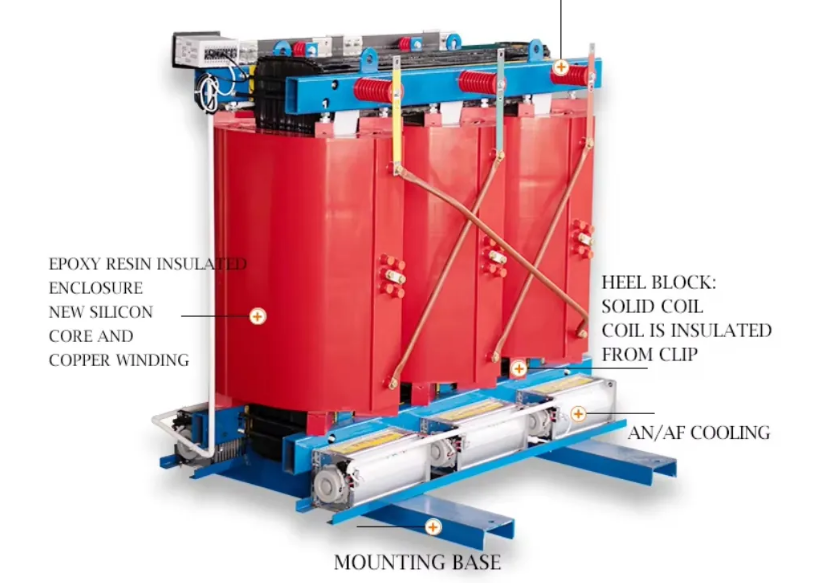

Dry-type transformers are static electrical devices that use natural air as the primary cooling medium. During the voltage conversion process, heat is generated—this is dissipated through airflow and protected by fire-resistant Dupont Nomex insulation, which helps prevent overheating, fires, and other safety hazards.
These transformers are commonly used in low to medium-voltage applications, making them well-suited for utility, industrial, and commercial settings. Their windings, made from copper or aluminum, are typically sealed with varnish to enhance durability and performance. Various configurations are available to meet specific environmental and operational needs. While dry-type transformers may have a higher initial cost than liquid-filled alternatives, they often yield better long-term profit margins due to lower maintenance and environmental risk.
At Tianya, we design and manufacture dry-type transformers that operate without the use of hazardous cooling liquids. Our advanced copper-wound designs ensure high efficiency, reliable performance, and quiet energy output—making them both cost-effective and environmentally responsible.
We use only high-quality materials and skilled craftsmanship to meet the diverse demands of modern electrical systems.
Liquid-insulated transformers, also known as wet-type transformers, use fluid-based cooling methods—typically mineral oil, silicone, or hydrocarbons—along with fans to dissipate heat. These fluids effectively reduce high-temperature hot spots within the transformer coils, enhancing durability and performance. Compared to dry-type transformers, liquid versions are often quieter and are particularly well-suited for medium- to high-voltage applications.
A liquid transformer is typically more efficient than a dry type. A wet type is smaller and needs less demand to make a conversion.
The main difference between a dry type and a liquid transformer is how they cool down. However, there are other variances worth knowing when deciding which is best for your operations.
Dry-type transformers do not rely on toxic or flammable fluids for cooling, eliminating the need for gas ventilation systems and significantly reducing the risk of fire or explosion during overload conditions. Their air-cooled design makes them a safer choice, especially for indoor installations in sensitive environments such as hospitals, schools, and other public facilities. While dry transformers are also suitable for outdoor use, their primary advantage lies in their enhanced safety profile.
From an environmental standpoint, dry-type transformers generate less waste but offer limited options for recycling compared to liquid-filled models.
Liquid-insulated transformers, on the other hand, use flammable dielectric fluids—commonly mineral oil—which provide effective cooling, especially under overload. However, these fluids pose environmental risks if spilled and often require containment systems such as troughs or bunds. Due to the fire and explosion hazards associated with the fluids, liquid transformers are generally not recommended for indoor use. If used indoors, additional safety measures must be in place to mitigate fire risk and limit human exposure to the dielectric fluid.
Some modern liquid-insulated transformers use alternative fluids like silicone, natural esters, or hydrocarbons. These options may be non-toxic, biodegradable, renewable, and feature higher flashpoints, making them safer and more environmentally friendly.
While dry-type units are safer and more straightforward in terms of waste management, liquid transformers offer broader opportunities for recycling and remanufacturing. Components such as the coil and core can often be replaced, reclaimed, or recycled, and the insulating fluid can be reconditioned and reused. Salvaging materials like copper, aluminum, and steel is also feasible—though local regulations should be consulted.
In summary, dry transformers prioritize safety and low environmental impact during operation, while liquid-filled units offer greater recyclability and long-term material recovery potential.
Maintenance requirements for dry-type and liquid-filled transformers differ significantly, with dry-type transformers generally being simpler to maintain.
These air-cooled units primarily require regular visual inspections. The frequency of inspection depends on the load and usage intensity—greater use demands more frequent checks. Although dry-type transformers are less susceptible to contamination, it’s essential to monitor for dust accumulation. Clean the windings, grilles, and coils using compressed air, a vacuum, or a blower.
Additionally, inspect for loose connections, which can affect performance. Despite their relatively straightforward upkeep, dry-type transformers may incur higher maintenance costs in certain cases due to limitations in size and voltage capacity, which can increase the risk of overheating under heavy loads.
These transformers require more comprehensive maintenance due to the presence of insulating fluid. Like dry units, begin by inspecting and tightening all electrical connections. Next, check fluid levels, gauges, and look for signs of leakage. A reading of zero pressure can indicate a potential leak, which may require immediate attention in line with local, state, and federal regulations if a spill occurs.
Leaks can also result from worn components such as gaskets—replace any deteriorated parts promptly. In addition, perform fluid sampling to assess the condition of the insulating liquid. A Dissolved Gas Analysis (DGA) test can help detect issues such as moisture, contamination, dielectric strength, and the presence of flammable gases. If gas levels exceed acceptable thresholds, the fluid may need to be filtered or replaced.
Compared to dry-type models, liquid-filled transformers demand more frequent and thorough maintenance to ensure optimal performance and safety.
Liquid-filled transformers benefit from the superior heat capacity of dielectric fluids, enabling them to operate at higher load levels while maintaining lower internal temperatures. Dry-type transformers rely on air as the cooling medium and are therefore more sensitive to ambient temperature and ventilation conditions. However, properly engineered airflow, enclosure design, and forced-air cooling can significantly reduce this performance gap.
At the same power rating, liquid-filled transformers generally exhibit slightly lower no-load and load losses. Over a service life of 25 to 30 years, these efficiency gains can result in measurable energy cost savings, particularly in applications operating continuously at or near full load. Dry-type transformers equipped with high-grade silicon steel or amorphous metal cores can substantially narrow this difference.
Dry-type transformers may also generate slightly higher audible noise because liquid-filled designs benefit from the vibration-damping effect of the insulating fluid surrounding the core. In practice, transformer noise can be effectively controlled through optimized enclosure design, vibration isolation, and lower flux density core designs. For noise-sensitive applications, sound level requirements should be specified during procurement and verified through test reports in accordance with NEMA TR1 and IEEE C57.12.91.
Installation requirements are often just as important as electrical performance when selecting a transformer.
Dry-type transformers are typically suitable for indoor installation and can be located close to the electrical load without requiring fluid containment systems. They are also generally lighter than liquid-filled transformers with the same power rating, making them well suited for upper-floor or rooftop installations where structural load capacity is limited. In North America, NEC Article 450 establishes installation requirements, including clearance, ventilation, and fire protection provisions that differ between dry-type and liquid-filled transformers.
Liquid-filled transformers are traditionally installed outdoors or within dedicated transformer rooms because they require fluid containment and additional fire protection measures. Although high fire-point ester fluids have made certain indoor installations feasible, liquid management and containment systems remain important design considerations, increasing both infrastructure requirements and installation complexity compared with dry-type transformers.
At higher capacity ratings—typically above 1,500 kVA—liquid-filled transformers often offer a lower cost per kVA than dry-type transformers. At lower ratings, however, the cost difference becomes smaller or may even favor dry-type transformers, making them the more economical choice in terms of initial investment.
Beyond the purchase price, the total lifecycle cost depends on several factors, including installation infrastructure (such as fluid containment, fire protection, and ventilation), maintenance and diagnostic requirements, energy losses over the transformer's service life, and end-of-life disposal. While dry-type transformers generally have a higher initial purchase cost, they typically require less installation infrastructure and maintenance. Over a 25- to 30-year service life, these lower operating costs often offset the higher upfront investment, particularly in indoor and occupied environments.
The choice between dry-type and liquid-filled transformers should be based on application requirements rather than a preference for one technology over the other.
Dry-type transformers are commonly selected for indoor installations, occupied buildings, locations with stringent fire safety requirements, upper-floor or structurally constrained sites, and applications where the presence of insulating fluid is undesirable.
Liquid-filled transformers are generally preferred for higher-capacity installations, typically above 1,500 kVA, outdoor applications with appropriate fluid containment infrastructure, systems requiring sustained overload capability, and facilities where dissolved gas analysis (DGA) is incorporated into the asset management and predictive maintenance program.
For the applications where they are most commonly used, dry-type transformers are consistently selected for several key advantages:
· Enhanced safety for occupied spaces — Without insulating fluid, there is no risk of oil leakage or spills, no need for fluid containment systems, and a lower overall fire load.
· Greater installation flexibility — Dry-type transformers can typically be installed indoors without containment infrastructure. Their lighter weight and simpler installation requirements also facilitate compliance with building and electrical codes.
· Reduced maintenance requirements — Routine fluid sampling, dissolved gas analysis (DGA), and end-of-life fluid handling are not required, resulting in simpler long-term maintenance.
· Lower lifecycle cost for indoor applications — Although the initial purchase price may be higher, reduced infrastructure and maintenance requirements often make dry-type transformers the more economical solution over their service life in indoor installations.
· Flexible customization — Dry-type transformer designs can be readily adapted to custom voltage ratings, specialized enclosures, and application-specific requirements.
Several common misconceptions can lead to inappropriate transformer selection:
· Assuming all liquid-filled transformers offer similar performance, despite significant differences in insulating fluid type, fire characteristics, and environmental performance.
· Assuming dry-type transformers are always the safest option, regardless of the installation environment or application requirements.
· Assuming liquid-filled transformers are always more efficient, when actual efficiency also depends on transformer design, core materials, and loading conditions.
· Comparing only the initial purchase price without considering installation costs, maintenance requirements, operating losses, and end-of-life disposal.
Dry-type and liquid-filled transformers use different insulation and cooling methods, and each offers distinct advantages for specific applications. Dry-type transformers provide a practical solution for indoor and occupied environments by offering simplified installation, reduced environmental risk, and lower maintenance requirements. Liquid-filled transformers, meanwhile, deliver excellent thermal performance and higher power density, particularly in larger-capacity applications.
The optimal choice depends on the installation environment, safety requirements, lifecycle objectives, and required capacity. For indoor installations, occupied buildings, and projects where installation simplicity and low maintenance are priorities, dry-type transformers continue to be the preferred solution.
